Refrigerated Chest for Rapidly Quenching Beverages




Patent Numbers:

US9200831B2

US20160097577A1

US8549871B1

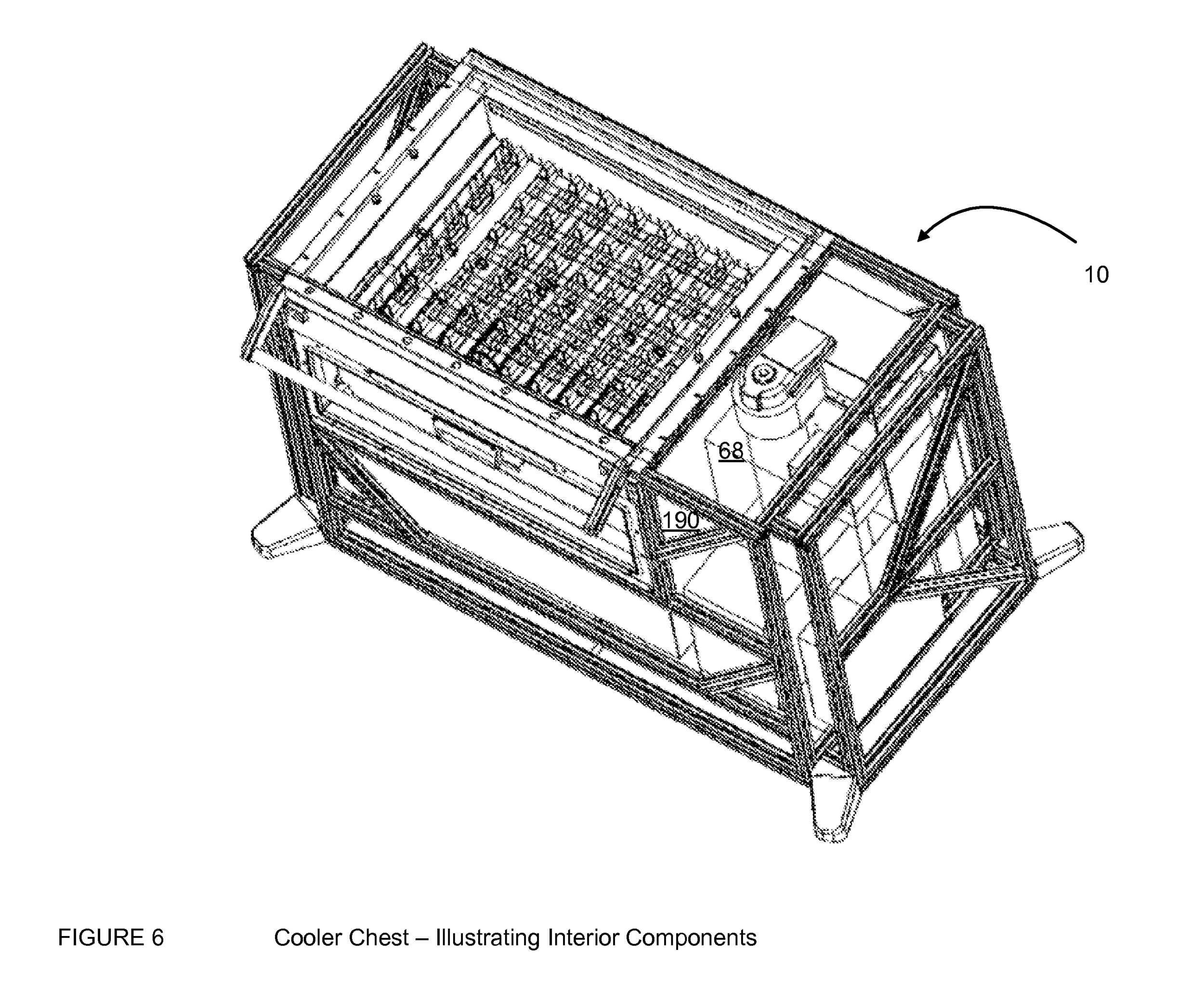

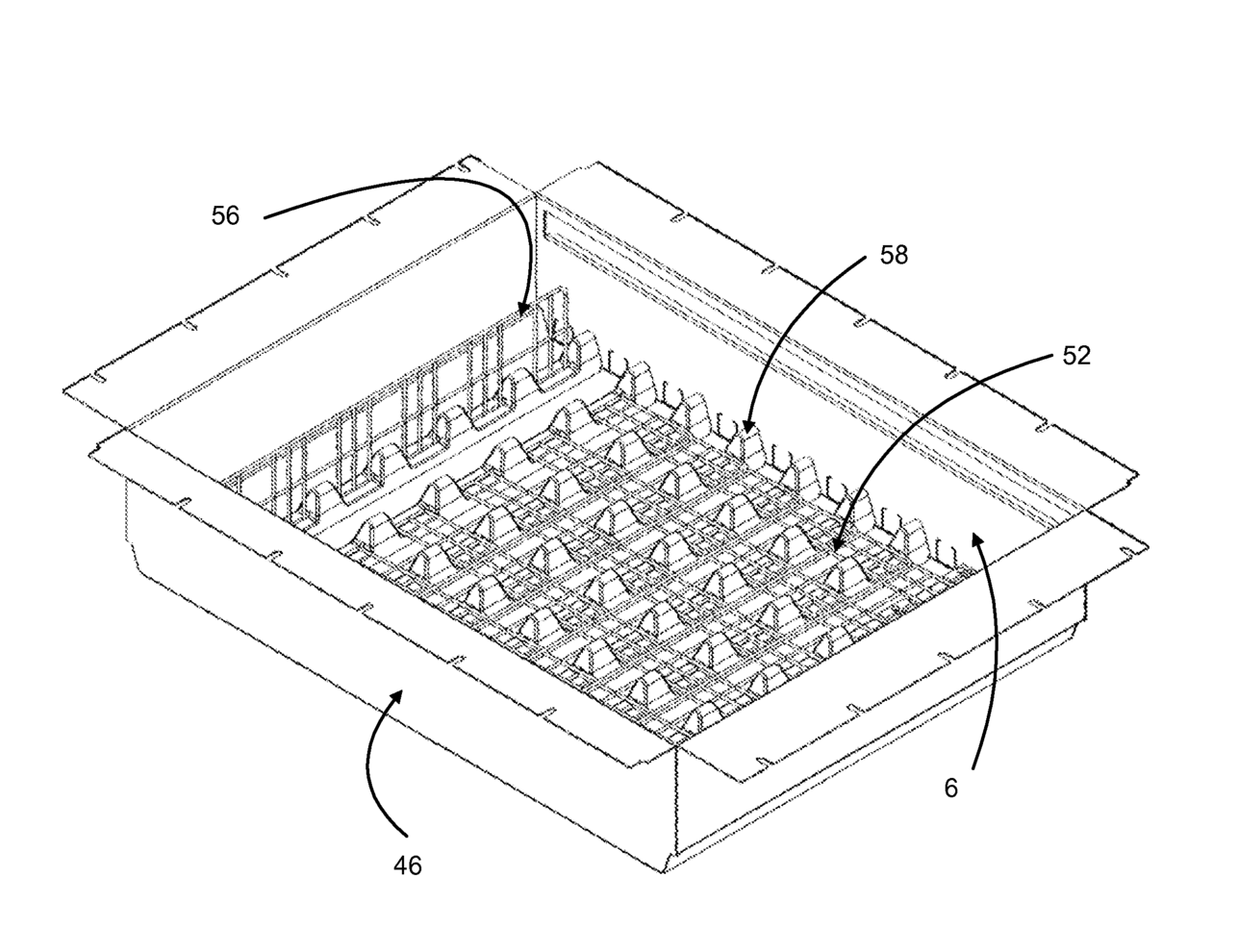

The disclosure features various embodiment and aspects of a chest for quenching beverages. The chest can include a tank for holding a chilled mixture of ice and water, an ice maker adapted for making ice having an output for ejecting ice into a conduit in fluid communication with the tank, and a plurality of quench trays disposed above the tank for holding containers of beverages located in first and second positions. The trays can be filled with cold water by way of a conduit in fluid communication with the tank. The quench trays can include a compartment defined by a bottom and a plurality of walls, and defining therein a plurality of rows for aligning and containing a plurality of beverage containers. The drawers can further include at least one drain orifice configured to guide water out of the quench tray.
